Product Description
USHIO is one of the largest and most trusted names in the manufacturing of high pressure xenon lamps today. Xenon short-arc lamps boast a spectrum that is closer to natural sunlight than that of any other artificial light source. In addition to commercializing products for search and spot lights, which demand precise, powerful white beam lamps, USHIO became the first in the world to develop a xenon short-arc lamp exclusively for large scale, theater-use movie projectors.
USHIO’s DXL series of digital xenon lamps achieve the highest performance for digital cinema projection. Digital cinema projectors have a more complex optical system than that of film projectors and require lamps with much higher brightness and a more stable arc. USHIO’s DXL series are 20-50% brighter than that of standard lamps of the same wattages. DXL lamps are optimized to meet technical standards especially for digital 3-D screenings.
USHIO's DXL series of Xenon lamps have been developed as the preferred light sources for NEC digital cinema projectors, providing high stability and high reliability. These high-luminance light sources are optimized to meet the increased demands of digital projection and 3D exhibition standards.
USHIO's DXL series are officially approved and recommended for use in NEC digital cinema projectors.

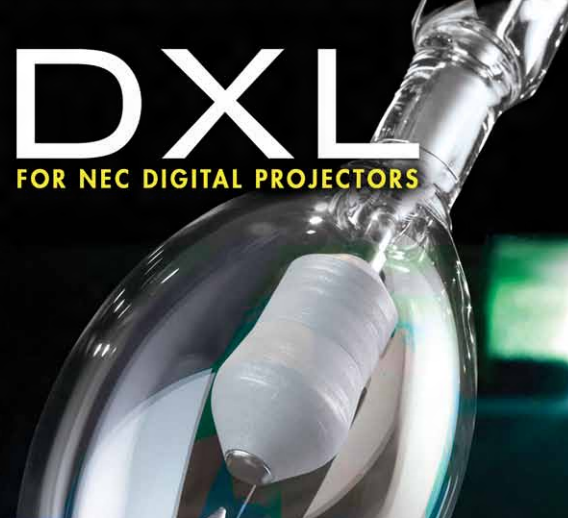

DXL Digital Lamps for NEC Digital Cinema Projectors
NEC PROJECTOR | USHIO Ordering Code |
USHIO | Wattage Max. / Min. | Current Max. / Min. | Total Projected Lumens | 100% Warranty Hours |
---|---|---|---|---|---|---|
NC1200C NC1600C NC2000C |
5002267 | DXL - 12SN | 1200 / 840 | 75 / 35 | 4400 | 3000 |
5002268 | DXL - 15SN | 1500 / 1050 | 80 / 40 | 7100 | 3000 | |
5002168 | DXL - 20SN3 | 2000 / 1400 | 85 / 50 | 9700 | 2400 | |
NC1500C | 5002169 | DXL - 30SN | 3000 / 2100 | 110 / 70 | 12800 | 1500 |
NC1600C NC2000C |
5002270 | DXL - 30SN2 | 3000 / 2100 | 125 / 65 | 11800 | 1200 |
NC1600C NC2000C |
5002170 | DXL - 40SCN | 4000 / 2800 | 138 / 83 | 12700 | 1500 |
5002178 | DXL - 40SN2 | 4000 / 2800 | 138 / 83 | 15000 | 1000 | |
5002171 | DXL - 40SN | 4000 / 2800 | 138 / 83 | 18300 | 650 | |
NC3240S - 4kW | 5002276 | DXL-12SN2 | 1200 / 840 | 75 / 35 | 5600 | 3000 |
5002277 | DXL-15SN2 | 1500 / 1050 | 80 / 40 | 7600 | 3000 | |
NC2500S |
5002269 5002278 5002229 5002228 5002227 |
DXL-21SN3 DXL-31SN2 DXL-41SCN DXL-41SN2 DXL-41SN |
2000 / 1400 3000 /2100 4000 / 2800 4000 / 2800 4000 / 2800 |
90 / 45 125 / 65 138 / 83 138 / 83 138 / 83 |
11800 15400 16000 20300 24000 |
2400 1200 1500 1000 650 |
NC2500S NC3200S NC3240S - 7kW |
5002172 | DXL - 45SN | 4500 / 3150 | 158 / 95 | 22400 | 1000 |
5002273 | DXL - 45SN/L* | 4500 / 3150 | 158 / 95 | 21400 | 1200 | |
5002173 | DXL - 60SN | 6000 / 4200 | 167 / 105 | 27000 | 600 | |
5002274 | DXL - 60SN/L* | 6000 / 4200 | 167 / 105 | 26000 | 800 | |
5002174 | DXL - 70SN | 7000 / 4900 | 180 / 115 | 33000 | 300 |
* - L-Series
Product Videos
NEC projector with Ushio Lamp
-
NEC projector ...NEC projector with Ushio Lamp
Product Videos
Warranty Information
Full USHIO limited warranty. In the event of an USHIO lamp explosion, USHIO will provide full 100% lamp and glass reflector coverage for NEC projectors. The reimbursement will be for the reflector cost as per invoice provided by customer. Reimbursement is subject to factory analysis.
100% Warranty
DXL-12SN 3000 Hours
DXL-15SN 3000 Hours
DXL-20SN 2400 Hours
DXL-20SN3 2400 Hours
DXL-21SN3 2400 Hours
DXL-30SN 1500 Hours
DXL-30SN2 1000 Hours
DXL-40SCN 1500 Hours
DXL-40SN2 1000 Hours
DXL-40SN 650 Hours
DXL-41SCN 1500 Hours
DXL-41SN2 1000 Hours
DXL-41SN 650 Hours
DXL-45SN 1000 Hours
DXL-45SN/L 1300 Hours
DXL-60SN 600 Hours
DXL-60SN/L 800 Hours
DXL-70SN 300 Hours
