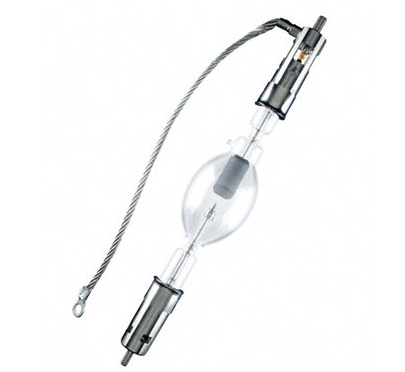

OSRAM Sylvania 69486 XBO 2000W/HPS OFR Xenon Lamp

  • Image 1
  • Image 2
  • OSRAM XBO 2000W/HPS
Price:
$663.00
SKU:
69486
Condition:
New
Availability:
Usually ships in 2-4 days.
Shipping:
Calculated at checkout


Product Description

XBO lamps are short-arc lamps in which light is generated by a discharge arc burning in pure high pressure Xenon gas between two electrodes. XBO lamps have a very high colour rendering index and extremely high luminance. For this reason they are used for cinema film projection, high-end video projectors and in light guide systems, e.g. for endoscopy.



Product Information
Abbrev. With Packaging Info. XBO2000WHPSOFR 1/CS 1/SKU
Application Digital Cinema Projection
Average Luminance (cd/cm2) 170000
Base Anode SFaX30-14/68
Base Cathode SFc30-20/50
Warranty Hours 2400
Bulb T14.5
Class C (gas)
Cooling Required
Current (A) 80
Current Control Range (A) 50-85
Diameter d (in) 1.850
Diameter d (mm) 47.00
Distance a (mm) 128
Electrode Gap (cold) (mm) 5.8
Family Brand Name XBO®
Hot Restart Yes
Lamp Finish Clear
Length l1 max. (mm) 334
Length l2 max. (mm) 297
Light Center Length - LCL (mm) 128
Luminous Area w x h (mm) 1.2 x 3.2
Luminous Intensity (cd) 9000
Maximum Base Temperature °C 230
Maximum Overall Length - MOL (mm) 334
Nominal Voltage (V) 25.00
Nominal Wattage (W) 2000.00
Operating Position s110
Reflector Coating 47.00
Type of Current DC



Footnotes
  • OFR=Ozone Free
  • s (Operating Position) = Vertical, base down
  • p (Operating Position) = Horizontal
  • This lamp has positive pressure even when cold. Please read safety/warning instructions before using this lamp.
  • Distance a is from end of base to the respective electrode tip (cold) - see lamp drawing.
  • With vertical operating position: anode(+) on top.
  • HP=High Performance
  • =Sony (Sony projector)
