OSRAM XBO 3000W/H XL

OSRAM XBO 3000W/H XL OFR Xenon Lamp

Price:

$583.00

SKU:

XBO 3000W/H XL

Brand:

Osram Sylvania

Condition:

New

Availability:

Usually ships in 2-4 days.

Shipping:

Calculated at checkout

Product Description

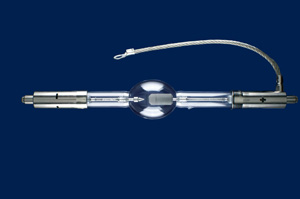

XBO lamps are short-arc lamps in which light is generated by a discharge arc burning in pure high pressure Xenon gas between two electrodes. XBO lamps have a very high colour rendering index and extremely high luminance. For this reason they are used for cinema film projection, high-end video projectors and in light guide systems, e.g. for endoscopy.

Product Number:		69478
Order Abbreviation:		XBO 3000 W/H XL OFR
General Description:		3000 Watt Xenon High Pressure Cinema Film Projection Lamp - Xtreme Life

Product Information
Abbrev. With Packaging Info.	XBO3000WHXLOFR 1/CS 1/SKU
Application	Cinema Film Projection
Magnetic Arc Stabilization	Required
Average Luminance (cd/cm2)	85000
Base Anode	SFaX27-13
Base Cathode	SFa27-14
Warranty Hours	2200
Bulb	KO158
Class	C (gas)
Color Rendering Index (CRI)	98
Color Temperature (K)	6000
Cooling	Required
Current (A)	100
Current Control Range (A)	60-110
Diameter d (in)	0.000
Diameter d (mm)	0.00
Distance a (mm)	167.5
Electrode Gap (cold) (mm)	6
Family Brand Name	XBO®
Hot Restart	Yes
Lamp Finish	Clear
Length l1 max. (mm)	428
Length l2 max. (mm)	382
Light Center Length - LCL (mm)	167.5
Luminous Area w x h (mm)	1.7 x 5.0
Luminous Flux (lm)	130000
Luminous Intensity (cd)	12000
Maximum Base Temperature °C	230
Maximum Overall Length - MOL (mm)	428
Nominal Voltage (V)	29.00
Nominal Wattage (W)	3000.00
Operating Position	s30 p30
Reflector Coating	0.00
Type of Current	DC
